Zabbix Template CUCM Resources Monitoring
CUCM Settings

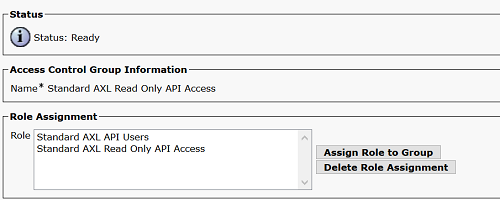

- Access Control Group: Standard AXL Read Only API Access
- Role Assignment:
- Application User: Monitoring
- Password: Password
- Groups:
- Standard AXL Read Only API Access
- Standard CCM Server Monitoring
Template
This template monitors the resources of each node of the CUCM cluster through AXL:
- Calls Active
- Annunciator Out Of Resources
- HW Conference Out Of Resources
- Location Out Of Resources
- MOH Out Of Resources
- MTP Out Of Resources
- MTP Resources Active
- SW Conference Out Of Resources
- Transcoder Out Of Resources
- Transcoder Resources Active
- Video Out Of Resources

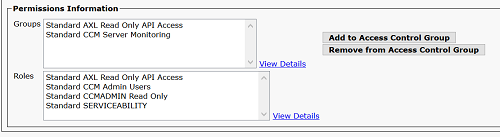

Create a user and give him the appropriate permissions in CUCM
- Create an Access Control Group and assign the roles below.
- Create an Application User for Zabbix and add him to created group. Add him to "Standard CCM Server Monitoring" group too.
Configure CUCM node on Zabbix
- Add CUCM node IP address on "Agent interfaces"
- Add macro
{$ZABBIX_APIUSER_UC}- value: Username of Zabbix in CUCM. - Add macro
{$ZABBIX_APIPASS_UC}- value: Password of the Zabbix user in CUCM. - Attach "Cisco AXL Resources Monitoring" template to the host.
Template for Import
